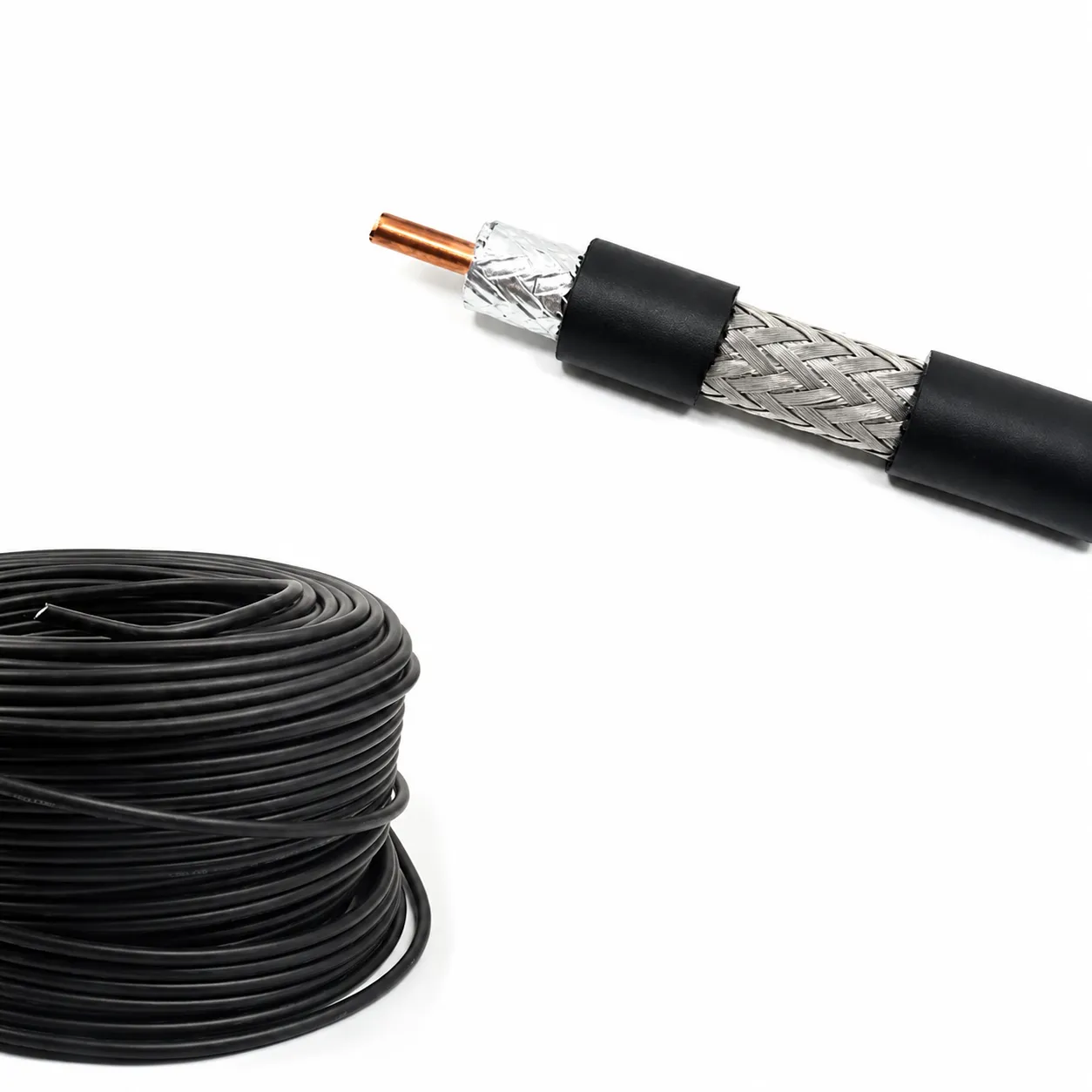

When Is Rg Cable Manufacturer the Best Choice for

Selecting a specialized rg cable manufacturer becomes essential when an off-the-shelf commercial cable lead cannot satisfy the electrical, mechanical, or documentation requirements of your RF system. B2B procurement teams managing telecommunications infrastructure, industrial automation, marine equipment, and defense integrations know that the lowest quoted unit price rarely represents the true cost of ownership. Working directly with a custom rg cable manufacturer ensures that an engineering requirement is transformed into a traceable, repeatable, and inspectable coaxial assembly.

This guide details the exact operational scenarios where partnering with an established rg cable manufacturer creates tangible technical and financial value, focusing on qualification parameters, quality inspection, and RG-series specification controls.

Defining System-Level Customization Requirements

A qualified rg cable manufacturer provides value when multiple technical parameters must be controlled as an integrated assembly rather than assembled from unverified parts. RF attenuation and impedance continuity are inherently frequency-dependent: a cable assembly that performs adequately at 900 MHz may introduce severe signal loss, reflections, or phase distortion when deployed in 6 GHz or 12 GHz radar and microwave links.

When submitting a Request for Quote (RFQ) to an rg cable manufacturer, engineering teams should provide an application brief defining the operating duty rather than a vague description.

Essential RFQ Parameters for Custom Builds:

Electrical Limits: Target impedance, maximum operating frequency, acceptable insertion loss per meter, and Voltage Standing Wave Ratio (VSWR) limits across the full band.
Mechanical Constraints: Minimum dynamic and static bend radii, strain relief requirements, overall length tolerance, and connector interface orientation.
Environmental Sealing: Operating temperature ranges, thermal cycling specs, UV exposure, moisture ingress protection (IP ratings), and vibration resistance.
Quality Documentation: Swept insertion-loss test reports, lot traceability, MIL-STD testing compliance, and Certificate of Conformance (CoC).

Comparing Common RG Cable Specifications for OEM Applications

Different RG-series coaxial cables serve distinct physical and electrical roles across commercial and industrial architectures. Partnering with a skilled rg cable manufacturer ensures the proper cable construction is selected for your specific route and environmental load.

RG Coaxial Cable Family	Primary Application Scenario	Key Physical Attributes	Electrical & Mechanical Considerations
RG 316 Coax	High-density internal jumper links, military communications, compact enclosures	Miniature outer diameter (1.52 mm), silver-plated copper clad steel conductor, FEP jacket	Excellent high-temperature resistance (-55°C to +200°C); flexible for tight bend radii; higher attenuation per meter than larger cables.
RG 223 U	Double-shielded instrumentation runs, mobile radio systems, test cables	Double silver-plated copper braiding, solid polyethylene dielectric, PVC/LSZH jacket	High shielding effectiveness (>60 dB); stable 50-ohm impedance continuity; reduced inter-system crosstalk in high-EMI environments.
RG 11 Coax	Long-distance signal distribution, high-power video trunks, base station feeds	Large outer diameter (10.3 mm), thick low-loss foam polyethylene dielectric	75-ohm characteristic impedance; exceptionally low attenuation over long distances; rigid structure requiring careful routing planning.

When configuring an assembly with flexible rg 316 coax, engineers must verify that the high temperature rating matches the enclosure environment while accepting higher attenuation limits. Conversely, specifying rg 223 u double-shielded cable protects sensitive signal chains against electromagnetic interference in industrial cabinet environments.

Because rg 11 coax features a 75-ohm nominal impedance, it should never be mixed into 50-ohm RF systems without proper matching networks. An experienced rg cable manufacturer like Worldpeak will flag potential impedance mismatch risks before tooling and assembly begin.

Qualification Framework: Auditing Quality Systems and Capabilities

When evaluating an rg cable manufacturer, procurement teams should evaluate manufacturing capacity, quality control systems, and lead times as interconnected capabilities. A trustworthy rg cable manufacturer will openly provide quality documentation rather than relying on generic catalog claims.

Supplier Capability Evaluation Matrix
1. Quality System Scope — ISO 9001 / AS9100 Process Controls
2. MIL-STD Compliance — Environmental & Vibration Testing
3. Electrical Sweep Test — 100% Insertion Loss & VSWR Verification
4. Configuration Control — Revision-Controlled Drawing Package

Four Key Audit Dimensions for B2B Buyers:

Process Control & ISO Scope: Request current quality management system certificates and nonconformance escalation records to verify how manufacturing defects are contained.
Electrical Testing Rigor: Confirm whether the rg cable manufacturer performs 100% automated continuity, insulation resistance, and vector network analyzer (VNA) swept frequency testing for insertion loss and VSWR.
Traceability and Labeling: Ensure that custom part numbers, serial numbers, date codes, and lot numbers are printed directly onto heat-shrink boots or cable jackets for life-cycle traceability.
Supply Chain Control: Verify sample lead times, volume production lead times, and material availability processes for specialized connectors and raw cables.

Worldpeak Pre-Terminated Assemblies & Custom Manufacturing

To support reliable integration in demanding telecommunications, industrial, and defense applications, Worldpeak offers precision flexible and semi-rigid cable assemblies tailored to exact client specifications.

Worldpeak RG405 Pre-Terminated Cable Assembly: Engineered for high-frequency internal cabinet routing requiring tight shape retention, low attenuation, and precise 50-ohm impedance matching up to 18 GHz.
Worldpeak RG196 50-Ohm Coaxial Cable Assembly: Ideal for lightweight, high-temperature jumper connections where space and flexibility are primary design constraints.

By partnering with an experienced rg cable manufacturer like

Worldpeak

, engineering teams gain access to first-article sample validation, custom connector pairings, specialized strain relief options, and certified swept RF test reports prior to volume release.

Procurement Checklist: Supplier Selection & Release Steps

To guarantee seamless execution, review this operational checklist before releasing a production purchase order to an rg cable manufacturer:

Confirm Technical Requirements: Provide a complete engineering drawing detailing length tolerance, connector interfaces, plating specifications, and jacket materials.
Validate Impedance and Bandwidth: Ensure that selection of rg 316 coax, rg 223 u, or rg 11 coax matches the overall system impedance and frequency budget.
Approve First-Article Samples: Inspect first-article samples against the agreed drawing and test documentation prior to authorizing lot production.
Lock Down Minimum Order Quantities (MOQs): Clarify MOQ structure for prototype builds, pilot production, and recurring production runs.
Establish Final Acceptance Terms: Require that VNA test reports, visual inspection records, and certificate of compliance documents accompany each shipment.
